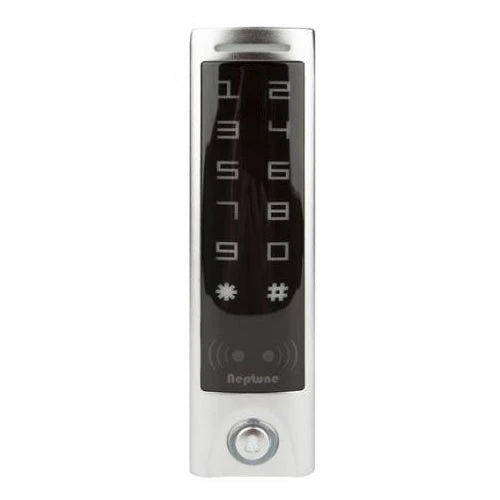

NEPTUNE TOUCH KEYPAD STAND ALONE (EM & HID)

The ACKPWST stand alone access control realise the card reading and touch-pad operation functions, lock, alarm, ring bell, exit button and the magnetic contact switch on the door.

Aluminium alloy structure, waterproof, fully potted, confirms to IP65. Touch panel.

Built-in 125KHz (EM & HID card) reader part.

Anti tamper, anti-vandal, Antistatic 15KV.

Digital backlit key. The back light can be set to Normal ON, Normal OFF or Automatic mode.

Door bell function.

Multi-function, can be use as reader; single door controller, anti-pass back, etc.

• Input voltage:DC12~24V.
• Idle current:≤35mA.
• Proximity card: EM & HID.
• Reading range: 3-6cm.
• Frequency:125KHz.
• Wiegand input & output format: 26-37 bit.
• Keypad output format: visual card No; 4 bits or 8 bits of data, single key pressing.
• Dimensions: 159 (H) x 43 (W) x 21.7 mm (D).
• Operating Temperature:-40~60℃.
• Operating Humidity：0~95%（non-condensing).
